उत्पाद विवरण:
|
| प्रोडक्ट का नाम: | पिन-कुशन प्रकार तरल टन बैग | सामग्री संरचना: | पीए/पीई/पीई; वीएमपीईटी/पीई/पीई; पीई/पीई/पीई; वीएमपीई/पीई/पीई |
|---|---|---|---|
| विशेषता: | उच्च तन्यता ताकत, पंचर प्रतिरोध, स्पष्ट पारदर्शिता, उच्च अवरोध, प्रकाश अवरोधन, रिसावरोधी, विकिरण नसब | औद्योगिक आवेदन: | सिरप, डेयरी उत्पाद, दैनिक रसायन, गैर-खतरनाक रसायन, तरल चीनी, जैम, अंडा तरल, केंद्रित रस, खनिज पानी, |
| अनुकूलन: | समर्थन आकार अनुकूलन, मोटाई समायोजन, वाल्व प्रकार/स्थिति अनुकूलन, मुद्रण अनुकूलन | पर्यावरणीय प्रदर्शन: | औद्योगिक पर्यावरण मानकों के अनुरूप, पुनर्नवीनीकरण योग्य एकल पीई सामग्री, पर्यावरण के अनुकूल एल्यूमीन |
| यांत्रिक प्रदर्शन: | तन्यता ताकत ≥30MPa, ब्रेक पर बढ़ाव ≥45%, थर्मल बॉन्डिंग ताकत ≥40N/15mm | ||
| प्रमुखता देना: | Liquid Storage Pin Cushion Ton Bag,Premium Pin Cushion Ton Bag |
||

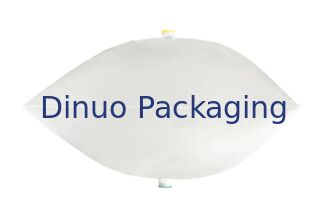

Premium Pin Cushion Type Ton Bag With High Barrier Performance For Liquid Storage
We independently research and development of domestic automatic ton bag machine line, the width of the machine is 2.5 meters, and has the patent of single and double mouth and large diameter filling mouth cover, the ton bag has advantages of high tensile strength, puncture resistance, clean storage and transportation, low cost, it mainly used for packing and storing syrup, dairy products, daily chemicals, non-hazardous chemicals, it can effectively reduce the costs of product packaging and transportation.
| Product Type | Liquid Ton Bag/Pin-Cushion Type Ton Bag |
| Material Structure | PA/PE/PE; VMPET/PE/PE; PE/PE/PE; VMPE/PE/PE |
| Core Features | High tensile strength, anti-rubbing, high barrier, leakproof, clean storage, oxygen/moisture/chemical resistance, soft texture, easy to recycle, radiation sterilization ≥15kGy, heat resistant ≤80℃ |
| Structural Patent | Single port design, large-caliber filling port cover patent, stable structure |
| Application | Syrup, dairy products, daily chemicals, non-hazardous chemicals, liquid sugar, jam, egg liquid, concentrated juice, edible oil, lubricant, binder, latex, detergent, wine, mineral water, engine oil, glue |
| Capacity Advantage | Large-volume storage, reduce packaging and transportation costs, low cost, efficient storage and transportation |
| Product name | Structural composition | Product feature |
Transparent ton bag |  | It has the characteristics of anti-rubbing, not easy to break, soft, stable oxygen permeability and so on. |
VMPET ton bag | | It has the characteristics of anti-rubbing, not easy to break, shading, good and stable water and oxygen permeability. |
Transparent ton bag | | Single material, easy to recycle, surface material using 100% PE, it’s more soft aance, and many other mechanical performance. |
VMPET ton bag | | Single material, easy to recycle, the surface is aluminized PE, it has properties of soft and anti-kneading, and has good barrier performance. |
| No | Inspection item | Standard requirement | |||||
| Aluminized PET bag | Aluminium foil bag | Nylon bag | Normal PE bag | Aluminized PE bag | High barrier transparent PE bag | ||
| 1 | Oxygen permeability | ≤1.0 | ≤0.5 | ≤100 | - | ≤1.0 | ≤0.5 |
| 2 | Water vapor permeabilityg/(m²·24 h) | ≤0.5 | ≤0.5 | ≤10 | ≤15 | ≤0.5 | ≤0.5 |
| 3 | Light transmittance% | ≤0.2 | ≤0.2 | - | - | ≤0.2 | - |
| 4 | Tensile strength (vertical/horizontal)MPa | ≥30 | ≥30 | ≥30 | ≥20 | ≥20 | ≥20 |
| 5 | Breakage nominal strain(vertical/horizontal) | ≥45 | ≥45 | ≥45 | ≥200 | ≥200 | ≥200 |
| 6 | Peel strength N/15 mm | ≥3.0 | ≥3.0 | ≥3.0 | - | ≥3.0 | ≥3.0 |
| 7 | Thermal bonding strength N/15 mm | ≥40 | ≥40 | ≥40 | ≥15 | ≥15 | ≥15 |
1. High Transparency & Visual Monitoring
This pin-cushion type liquid ton bag is made of transparent PE/PA materials, allowing direct visual inspection of the internal liquid volume and state without opening the bag. It is convenient for inventory management and real-time monitoring of liquid consumption in industrial production.
2. Strong Mechanical Toughness
With a tensile strength of ≥30MPa for nylon (PA) bags and ≥20MPa for normal PE bags, the ton bag has excellent resistance to tearing and puncturing during transportation and handling. Its elongation at break reaches ≥45% for PA bags and ≥200% for PE bags, ensuring structural integrity under heavy load.
3. Food-Grade Safe Material
Adopting food-grade PE and PA raw materials that comply with food contact safety standards, the ton bag is non-toxic and odorless, and does not react with food liquids such as syrup, dairy products and fruit juice. It meets the hygiene requirements of food liquid packaging and storage.
4. Broad Industrial Applicability
Suitable for packaging non-hazardous liquids including syrup, dairy products, daily chemicals, edible oil and lubricant, the ton bag can adapt to different viscosity liquids and is compatible with industrial filling and dispensing equipment, covering food, daily chemical and industrial fields.
5. Customizable Design Flexibility
We support customization of the bag’s size, thickness and valve type/position, and can also add anti-slip and wear-resistant treatments according to usage scenarios. Logo and product information printing on the bag surface is also available to meet brand customization needs.
6. Heat & Chemical Resistance
The ton bag is suitable for packaging hot liquid foods such as hot syrup. It also has good resistance to non-hazardous chemicals, and can store daily chemical products and industrial lubricants without material degradation.
Our advantages are as below:
1,We Manufacture the full process, from Raw materials to finished products, no outsourcing, minimize your cost
2,Our factories have more than 100 advanced machines, for high efficiency
3,Over 10 years experience, offering you more professional service.
4,ISO, SGS, ROHS FSC certified company, National CNAS certified laboratory, for quality guaranteed
5,Partner from worldwide famous brands.
6,Wide range of products available,one-step service, and saving shipping costs.
